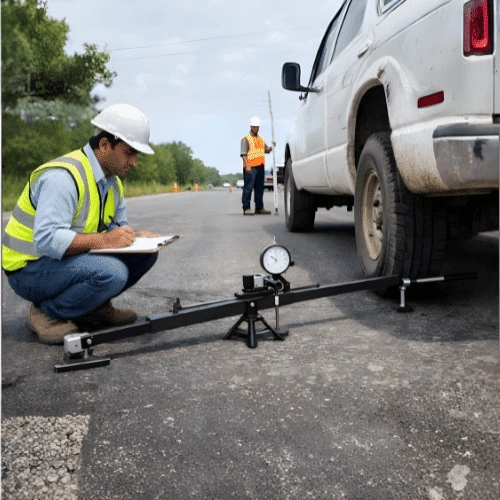

The Benkelman Beam Deflection test is a widely adopted non-destructive evaluation (NDE) technique used for assessing the structural adequacy and load-carrying capacity of flexible pavements. The test is based on measuring the elastic vertical deflection response of the pavement surface under a standard wheel load.

When a properly compacted and adequately trafficked pavement section is subjected to vehicular loading, the pavement layers experience elastic deformation. As the applied load is removed or moves forward, the pavement exhibits recovery behavior, commonly referred to as rebound deflection. The magnitude of this recoverable deflection is indicative of the structural condition and remaining service life of the pavement system.

Deflection measurements obtained through the Benkelman Beam apparatus provide critical input parameters for:

• Evaluation of pavement structural strength
• Identification of weak or distressed pavement stretches
• Overlay design and thickness determination
• Assessment of in-situ pavement performance under traffic loading
